TPU coiled cable manufacturer | Compare TPU coiled cable applications

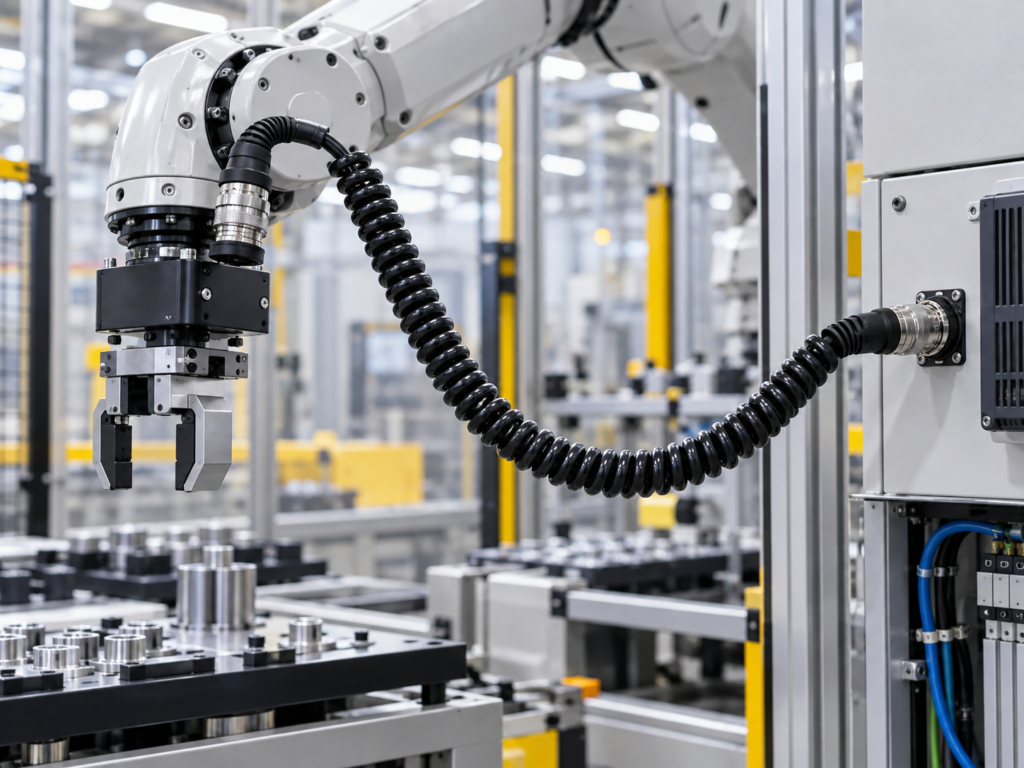

Quick Answer: Custom shielded TPU coiled cable for robot end-effectors, sensors, grippers and movable automation peripherals. Nexharn reviews electrical function, coil geometry, connector, environment, testing and packaging before sampling.
Send a drawing, sample photo or basic requirements for review.
Application Problems Buyers Should Review
Robot peripheral cables must balance movement, signal stability, coil recovery and connector retention. Shielding selected without a grounding plan may not solve interference at the equipment level.
Typical Applications
- Robot grippers and end-effectors
- Sensors and encoders
- Machine-vision peripherals
- Teach and control accessories
- Movable automation stations
Recommended Cable Construction
The assembly can combine power conductors, twisted signal pairs, foil or braid shielding, drain wire, TPU jacket and industrial connectors based on the robot motion and circuit functions.
Customization Options
- Conductor count, wire gauge and circuit function
- Relaxed length, normal working extension and straight tails
- TPU grade, hardness, color and cable diameter
- Open ends, molded connectors or customer-specified interfaces
- Optional twisted pairs, shielding and drain wire
- Labels, individual packing and export-carton requirements
Specifications to Confirm
| Electrical function | Power, signal, data or a defined combination |
|---|---|
| Coil geometry | Relaxed length, working extension, coil OD, pitch and straight tails |
| Connector | Model, pinout, orientation, locking and mating interface |
| Environment | Temperature, abrasion, contaminants, movement and storage conditions |
| Testing | Electrical, dimensional, extension, rebound and project-specific checks |
| Commercial details | Sample quantity, annual demand, labeling and packaging |
Connector and Strain Relief
Connector orientation, exit direction, straight-tail length and strain-relief geometry should be reviewed with the actual device. The cable should not be approved from connector appearance alone.
Testing and Sample Approval
Available checks can include continuity, pinout, dimensions, normal extension, rebound, connector retention, appearance and packaging inspection. The buyer should validate the sample in the actual equipment or a representative fixture before mass production.
Buyer Checklist
- Robot motion and routing envelope
- Power and signal circuit definition
- Twisted pairs, shielding and grounding
- Connector shell and retention
- Cycle test and EMC acceptance criteria
Common RFQ Mistakes
- Providing only the maximum stretched length
- Omitting the connector pinout or mating part
- Selecting TPU without describing temperature and contaminants
- Requesting shielding without defining grounding or signal needs
- Approving appearance without repeated extension and device testing
Related Products
Request a Custom Quote
If your drawing is incomplete, send equipment photos, basic dimensions, electrical function and estimated quantity first. Upload your RFQ for specification review.
Need a custom TPU coiled cable? Send a drawing, sample photo or basic requirements for review.
MOQ and Lead Time
MOQ is quoted after the conductor construction, TPU grade, connector, tooling, testing and packaging are reviewed. Sample and production lead times are estimated after the drawing revision, material availability, quantity and approval route are confirmed. Request written project terms; no fixed MOQ or delivery promise applies to every custom cable.
Testing and Custom-Option Resources
For project-specific test methods, equipment and acceptance records, review TPU cable testing and quality equipment. Use the RFQ, sample approval and packaging worksheets to describe custom conductor, connector, coil geometry, shielding, labels and pack options before quotation.
Read a related specification-review scenario. This is an illustrative buyer workflow, not a claimed customer delivery.
Compare TPU coiled cable types or send your drawing for MOQ and lead-time review.
Evidence to Review on the Physical Sample
Review the relaxed coil and working extension in the robot routing envelope, connector orientation, grounding termination, shield continuity and strain-relief transition. Validate movement and electrical behavior in the buyer’s representative fixture; a generic cycle claim should not replace the agreed application test.
Related TPU Coiled Cable Applications
Compare Industrial Control Pendant Coiled Cable, Emergency Stop and Safety Tether Coiled Cable, Multi-Core Shielded Coiled Cable for nearby equipment and circuit requirements. Use the TPU coiled cable application guide to browse the complete application range.
View all custom TPU coiled cables or send your drawing and application requirements.
Signal-cable resource: Use the shielding, drain wire and grounding checklist when preparing robot sensor wiring and connector requirements.
Typical Applications
Customization Options
Specification Checklist
| Extended length | Confirm by RFQ, drawing, sample, or target market requirement. |
|---|---|
| Retracted length | Confirm by RFQ, drawing, sample, or target market requirement. |
| Cable OD | Confirm by RFQ, drawing, sample, or target market requirement. |
| Working environment | Confirm by RFQ, drawing, sample, or target market requirement. |
Purchasing Specification for RFQ
To receive an accurate quote faster, please confirm the commercial and technical details below when sending your cable requirement.
Need the product catalog?
Download the catalog or request it with your RFQ to compare cable categories, customization options, and manufacturing capabilities.
Why B2B buyers choose Nexharn
Nexharn combines factory capacity, quality documentation support, and practical RFQ communication for custom cable and wire harness sourcing programs.
- Wire cutting machines
- Terminal crimping machines
- Injection molding equipment
- Cable testing instruments
- Aging test equipment
Buyer FAQ
Can Nexharn make this product with custom length or connector?
Yes. Please send the required length, connector type, drawing, sample photo, or target specification for review.
Can you support private label packaging?
Packaging can be reviewed based on your sales channel, carton requirement, barcode label, and destination market.
What should I include in an RFQ?
Send extended length, retracted length, cable OD, connector type, operating environment, and quantity.
