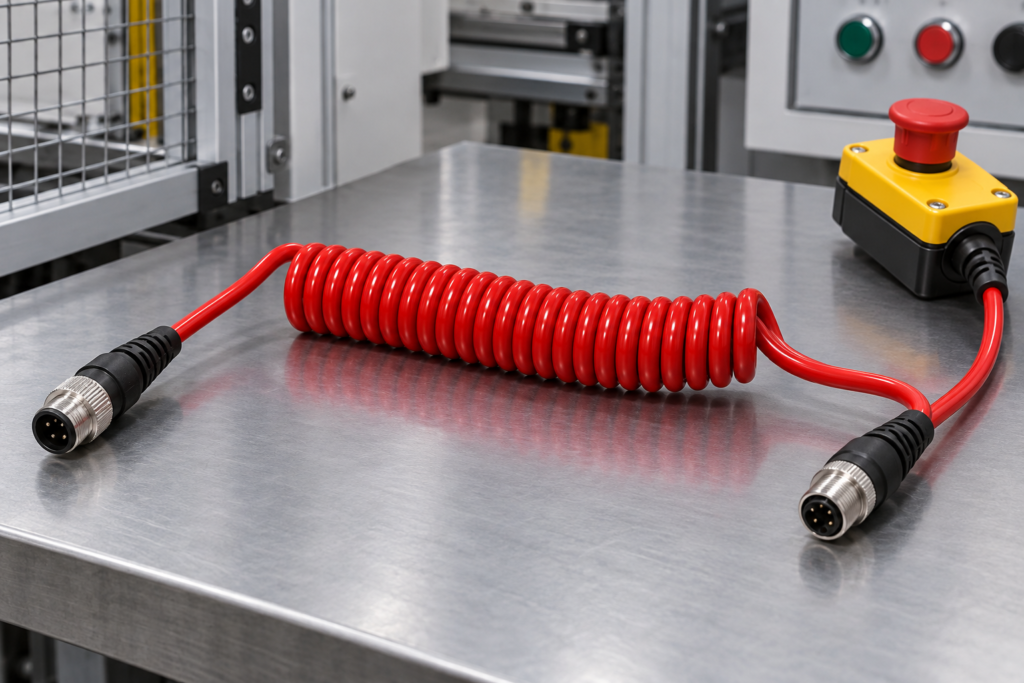

Custom TPU coiled cable for emergency-stop pendants, safety switches, machine interlocks and equipment tether connections. The cable assembly is designed from the safety circuit, connector system, mounting method and required working movement; no safety rating is implied without the applicable device and system documentation.
Quick Answer
An emergency-stop or safety-tether coiled cable must be specified from the complete machine safety design. Buyers should provide the circuit, connector pinout, mounting points, relaxed length, required reach, retention method and applicable customer or regulatory requirements before sampling.
Application Risks
- An incorrect contact assignment changes the intended safety circuit.
- Cable extension or return force affects switch access or pendant position.
- A connector can release when the cable is pulled.
- The coil enters moving machinery or creates an obstruction.
- A cable is described as safety-rated without system-level evidence.
Recommended Cable Construction
Possible construction includes multi-core control conductors, optional shielding, flexible TPU jacket, defined straight tails, high-visibility color options and locking, circular or customer-specified connectors. Conductor size, contacts and materials must follow the approved safety-system drawing.
Dimensions and Rebound
Specify mounting-point distance, stored position, operator reach, temporary extension, coil diameter, pitch and straight tails. Evaluate the sample on the real pendant, switch or tether installation so the coil does not restrict access or enter a moving zone.
Connector, Pinout and Shielding
Provide connector manufacturer and model, mating part, pinout, keying, locking, cable exit and any shield or protective-earth requirement. The connector and cable must be reviewed as part of the complete safety circuit, not as an isolated claim.
Testing and Sample Approval
- Continuity and pinout against the approved circuit
- Connector locking and retention inspection
- Relaxed and working length measurement
- Mounting and routing review on equipment
- Project-specified electrical or functional checks
- Label, revision and packaging verification
MOQ, Lead Time and Custom Options
MOQ and lead time are evaluated after the conductor construction, connector availability, tooling, sample checks, order quantity, marking and packaging are confirmed. Custom options include coil geometry, straight tails, conductors, gauge, shielding, jacket color, connectors, labels and unit packaging.
Buyer Checklist
- Machine, pendant or safety-device application
- Applicable circuit drawing and requirements
- Contact function, voltage and current
- Connector, mating part, pinout and locking
- Relaxed length, reach and mounting points
- Movement, routing and exposure conditions
- Sample quantity, annual demand and labeling
Compare all custom TPU coiled cable options or upload a drawing, sample photo and working-extension requirement for review.
Related TPU Coiled Cable Applications
Compare Industrial Control Pendant Coiled Cable, Robot End-Effector and Sensor Coiled Cable, Multi-Core Shielded Coiled Cable for nearby equipment and circuit requirements. Use the TPU coiled cable application guide to browse the complete application range.
Prepare sample criteria with the TPU RFQ and sample approval worksheets, then review testing methods and quality equipment questions.
View all custom TPU coiled cables or send your drawing and application requirements.
Termination resource: Review the strain relief and connector overmolding checklist before approving the cable exit and safety-control sample.
Typical Applications
Customization Options
Specification Checklist
| Extended length | Confirm by RFQ, drawing, sample, or target market requirement. |
|---|---|
| Retracted length | Confirm by RFQ, drawing, sample, or target market requirement. |
| Cable OD | Confirm by RFQ, drawing, sample, or target market requirement. |
| Working environment | Confirm by RFQ, drawing, sample, or target market requirement. |
Purchasing Specification for RFQ
To receive an accurate quote faster, please confirm the commercial and technical details below when sending your cable requirement.
Need the product catalog?
Download the catalog or request it with your RFQ to compare cable categories, customization options, and manufacturing capabilities.
Why B2B buyers choose Nexharn
Nexharn combines factory capacity, quality documentation support, and practical RFQ communication for custom cable and wire harness sourcing programs.
- Wire cutting machines
- Terminal crimping machines
- Injection molding equipment
- Cable testing instruments
- Aging test equipment
Buyer FAQ
Can Nexharn make this product with custom length or connector?
Yes. Please send the required length, connector type, drawing, sample photo, or target specification for review.
Can you support private label packaging?
Packaging can be reviewed based on your sales channel, carton requirement, barcode label, and destination market.
What should I include in an RFQ?
Send extended length, retracted length, cable OD, connector type, operating environment, and quantity.
