TPU coiled cables | Compare TPU coiled cable applications

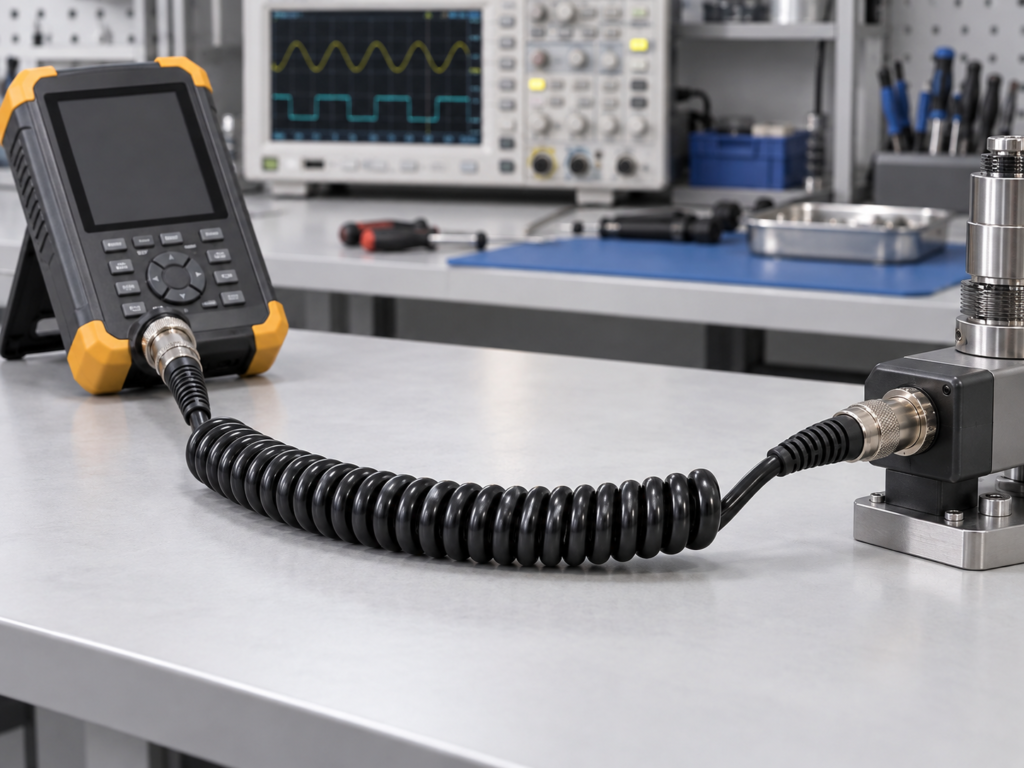

Quick Answer: Custom TPU coiled cable for handheld test instruments, measurement probes and portable diagnostic equipment. Nexharn reviews electrical function, coil geometry, connector, environment, testing and packaging before sampling.
Send a drawing, sample photo or basic requirements for review.
Application Problems Buyers Should Review
Measurement cable performance depends on circuit definition, shielding, connector contact quality and extended length. A visually similar cable may produce different signal behavior.
Typical Applications
- Handheld meters
- Portable diagnostic instruments
- Measurement probes
- Laboratory equipment
- Field-service test devices
Recommended Cable Construction
Flexible conductors, twisted pairs, optional foil or braid shielding, drain wire, TPU jacket and instrument connectors are selected around the measurement function.
Customization Options
- Conductor count, wire gauge and circuit function
- Relaxed length, normal working extension and straight tails
- TPU grade, hardness, color and cable diameter
- Open ends, molded connectors or customer-specified interfaces
- Optional twisted pairs, shielding and drain wire
- Labels, individual packing and export-carton requirements
Specifications to Confirm
| Electrical function | Power, signal, data or a defined combination |
|---|---|
| Coil geometry | Relaxed length, working extension, coil OD, pitch and straight tails |
| Connector | Model, pinout, orientation, locking and mating interface |
| Environment | Temperature, abrasion, contaminants, movement and storage conditions |
| Testing | Electrical, dimensional, extension, rebound and project-specific checks |
| Commercial details | Sample quantity, annual demand, labeling and packaging |
Connector and Strain Relief
Connector orientation, exit direction, straight-tail length and strain-relief geometry should be reviewed with the actual device. The cable should not be approved from connector appearance alone.
Testing and Sample Approval
Available checks can include continuity, pinout, dimensions, normal extension, rebound, connector retention, appearance and packaging inspection. The buyer should validate the sample in the actual equipment or a representative fixture before mass production.
Buyer Checklist
- Instrument and measurement function
- Voltage, current and signal requirements
- Shielding, grounding or impedance needs
- Connector and probe termination
- Electrical and movement acceptance tests
Common RFQ Mistakes
- Providing only the maximum stretched length
- Omitting the connector pinout or mating part
- Selecting TPU without describing temperature and contaminants
- Requesting shielding without defining grounding or signal needs
- Approving appearance without repeated extension and device testing
Related Products
Request a Custom Quote
If your drawing is incomplete, send equipment photos, basic dimensions, electrical function and estimated quantity first. Upload your RFQ for specification review.
Need a custom TPU coiled cable? Send a drawing, sample photo or basic requirements for review.
MOQ and Lead Time
MOQ is quoted after the conductor construction, TPU grade, connector, tooling, testing and packaging are reviewed. Sample and production lead times are estimated after the drawing revision, material availability, quantity and approval route are confirmed. Request written project terms; no fixed MOQ or delivery promise applies to every custom cable.
Testing and Custom-Option Resources
For project-specific test methods, equipment and acceptance records, review TPU cable testing and quality equipment. Use the RFQ, sample approval and packaging worksheets to describe custom conductor, connector, coil geometry, shielding, labels and pack options before quotation.
Read a related specification-review scenario. This is an illustrative buyer workflow, not a claimed customer delivery.
Compare TPU coiled cable types or send your drawing for MOQ and lead-time review.
Evidence to Review on the Physical Sample
Record the relaxed and working lengths, pinout, connector fit, shield and ground termination, continuity results and cable behavior while the instrument is moved. Signal, impedance or accuracy checks must follow the instrument requirement and an agreed method rather than a generic cable statement.
Related TPU Coiled Cable Applications
Compare Medical Equipment Coiled Cable, Shielded TPU Coiled Cable for nearby equipment and circuit requirements. Use the TPU coiled cable application guide to browse the complete application range.
View all custom TPU coiled cables or send your drawing and application requirements.
Typical Applications
Customization Options
Specification Checklist
| Extended length | Confirm by RFQ, drawing, sample, or target market requirement. |
|---|---|
| Retracted length | Confirm by RFQ, drawing, sample, or target market requirement. |
| Cable OD | Confirm by RFQ, drawing, sample, or target market requirement. |
| Working environment | Confirm by RFQ, drawing, sample, or target market requirement. |
Purchasing Specification for RFQ
To receive an accurate quote faster, please confirm the commercial and technical details below when sending your cable requirement.
Need the product catalog?
Download the catalog or request it with your RFQ to compare cable categories, customization options, and manufacturing capabilities.
Why B2B buyers choose Nexharn
Nexharn combines factory capacity, quality documentation support, and practical RFQ communication for custom cable and wire harness sourcing programs.
- Wire cutting machines
- Terminal crimping machines
- Injection molding equipment
- Cable testing instruments
- Aging test equipment
Buyer FAQ
Can Nexharn make this product with custom length or connector?
Yes. Please send the required length, connector type, drawing, sample photo, or target specification for review.
Can you support private label packaging?
Packaging can be reviewed based on your sales channel, carton requirement, barcode label, and destination market.
What should I include in an RFQ?
Send extended length, retracted length, cable OD, connector type, operating environment, and quantity.
