custom TPU coiled cable | Compare TPU coiled cable applications
Quick answer: Custom TPU coiled cable for barcode scanners, handheld terminals, POS equipment and warehouse scanning applications. Nexharn Connectivity reviews the electrical function, coil geometry, connector, working environment, testing and packaging before preparing a sample.
Request a Custom Quote | Send Us Your Drawing

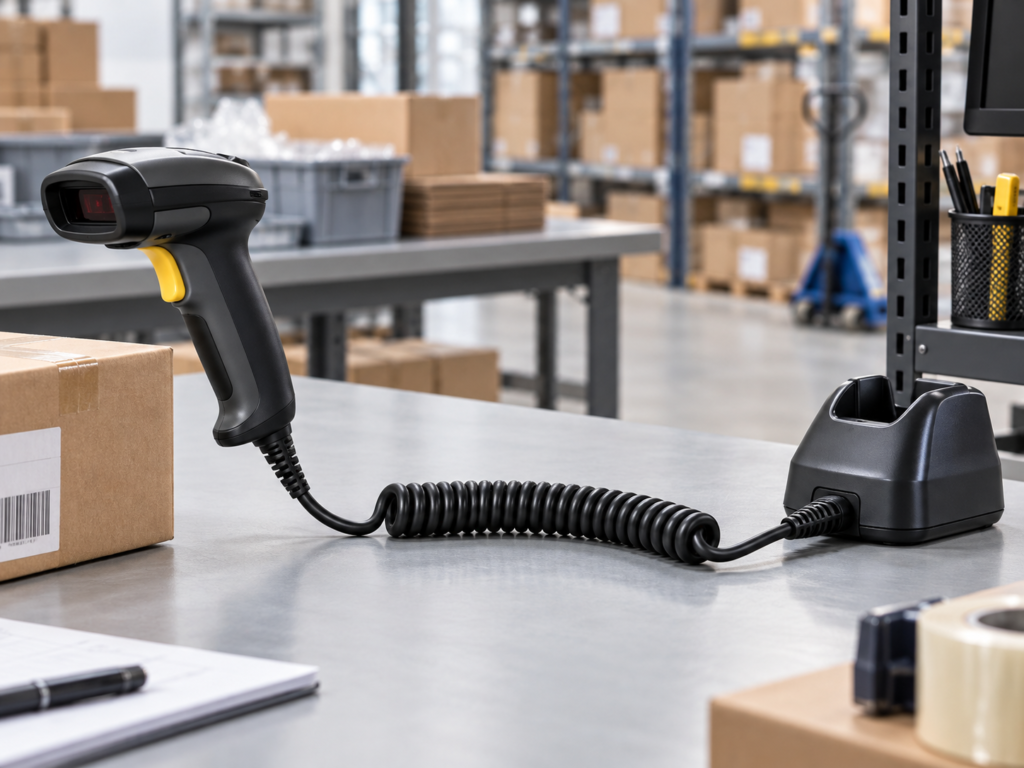

Barcode Scanner Coiled Cable for Custom Equipment Projects
Repeated pulling, twisting near the scanner handle, connector strain and loss of rebound can interrupt daily scanning work. The approved sample should be tested in the actual cradle and handheld device.
Typical Applications
- Warehouse barcode scanners
- Retail POS scanners
- Handheld data terminals
- RFID readers
- Inventory systems
Customization Options
- USB, RJ45 or project-specific connector
- Charging-only or defined data function
- Retracted and working extension length
- Straight tail length and exit direction
- TPU hardness, color and surface finish
Technical Specifications to Confirm
| Number of conductors | Customizable according to electrical function |
|---|---|
| Conductor size and material | Confirmed according to current, voltage drop, signal and flexibility requirements |
| Shielding | None, foil, braid or combined structure when required |
| Jacket | TPU grade, hardness, color and environment confirmed by project |
| Coil dimensions | Retracted length, normal working extension, coil OD, pitch and straight tails |
| Connector | Open end, molded connector or customer-specified interface |
| Temperature and rating | Confirmed according to cable construction and application requirements |
| Testing | Acceptance criteria agreed before sampling and mass production |
Cable Construction
The construction can combine flexible copper conductors, insulation, fillers, optional twisted pairs, optional shielding and an extruded TPU jacket. Coil diameter, pitch, cable OD and heat-setting process affect extension force and recovery. Larger conductors or additional shielding increase cable weight and can change rebound behavior.
Why TPU for This Application?
TPU is considered when buyers need flexible handling, abrasion resistance and controlled coil recovery. Final suitability depends on the selected formulation, conductor structure, temperature, contaminants, movement frequency and approved test criteria. TPU should not be selected by material name alone.
Testing and Quality Control
Available project checks can include pinout and continuity, electrical testing, coil dimensions, normal extension, rebound, connector retention, appearance, marking and packaging inspection. Test requirements and acceptance criteria are confirmed before sampling. The buyer should also test the sample in the actual device or a representative fixture.
Information Required for Quotation
- Target equipment and application photos
- Voltage, current, signal or data function
- Conductor count, wire gauge and shielding if known
- Retracted length, working extension and straight tail lengths
- Connector model, pinout and exit direction
- Operating environment and movement frequency
- Estimated quantity, testing, labeling and packaging requirements
If your drawing is not ready, send equipment photos, basic dimensions, application and estimated quantity first.
Buyer FAQ
Can the connector and cable length be customized?
Yes. Connector, pinout, coil dimensions and both straight tails are reviewed against the equipment installation.
How should rebound be specified?
Provide the relaxed length, normal working extension, maximum temporary extension and acceptable return force. These values must be balanced with conductor and cable construction.
Can shielding be added?
Foil, braid, drain wire, twisted pairs or combined shielding can be discussed when the signal and grounding requirement is known.
What should be checked during sample approval?
Check fit, electrical function, dimensions, repeated extension, recovery, connector stress, surface condition and packaging recovery.
Are MOQ and lead time fixed?
No. They depend on conductor, connector, material, tooling, testing, packaging and order quantity.
Related Products and Guides
Discuss Your Application
Send your drawing, sample photo, electrical requirement, coil dimensions, estimated quantity and packaging needs. Upload your RFQ for engineering review.
Buyer Checklist Before Sampling
- Scanner and cradle model
- Charging-only or data requirement
- Connector orientation and pinout
- Relaxed and normal working length
- Daily pull frequency and target quantity
Related TPU Coiled Cable Options
Next step: send a drawing, sample photo or basic requirements for review.
Need a custom TPU coiled cable? Send a drawing, sample photo or basic requirements for review.
Testing and Custom-Option Resources
For project-specific test methods, equipment and acceptance records, review TPU cable testing and quality equipment. Use the RFQ, sample approval and packaging worksheets to describe custom conductor, connector, coil geometry, shielding, labels and pack options before quotation.
