custom TPU coiled cable | Compare TPU coiled cable applications
Quick answer: A custom coiled cable for fitness equipment provides controlled extension for consoles, moving handles, adjustable components, charging points and sensor connections. Nexharn Connectivity reviews equipment movement, user pulling, sweat and cleaning exposure, vibration, conductor structure, connector, TPU jacket, coil geometry, testing and packaging. The design is confirmed through application review and sample approval rather than generic service-life claims.
Request a Custom Quote | Discuss Your Application

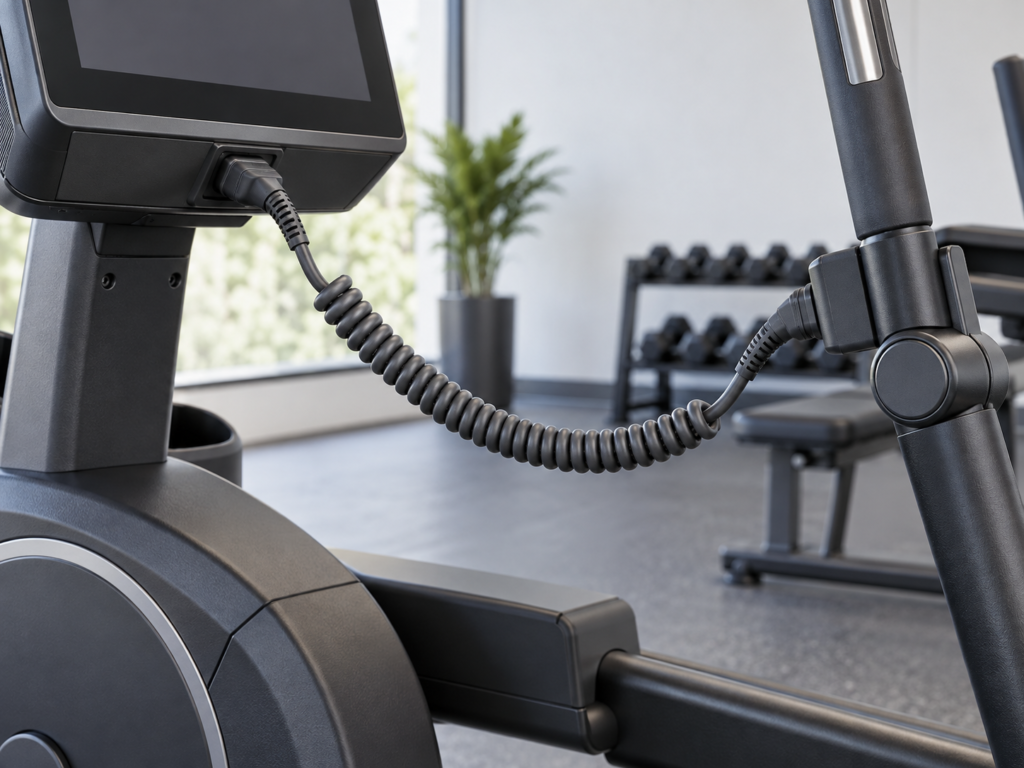

Coiled Cable for Fitness Equipment Product Overview
Fitness equipment creates a mix of repeated movement, vibration, user handling and routine cleaning. A cable may also hang vertically or be pulled from an angle. These conditions influence coil return, connector retention and strain relief. Buyers should provide equipment photos, movement range and installation points so the cable can be designed around real use.
Typical Applications
- Treadmills, exercise bikes and rowing machines
- Strength-training equipment and adjustable stations
- Console, display and control-panel connections
- Charging and low-voltage accessory connections
- Sensor, switch and movable component cable assemblies
Customization Options
- Power, signal or combined conductor arrangement
- Connector type, orientation and locking requirement
- Relaxed length, movement range and straight tails
- TPU color, hardness and cleanable surface options
- Strain relief for vibration and repeated user pulling
- Equipment label, spare-part packaging and carton requirements
Technical Specifications
| Number of Conductors | Confirmed according to application |
|---|---|
| Conductor Size | Customizable after current and signal review |
| Conductor Material | Flexible stranded copper options |
| Shielding | Optional where required |
| Cable Outer Diameter | Depending on cable construction |
| Jacket Material | TPU grade confirmed for application |
| Coil Outer Diameter | Customizable |
| Retracted Length | Customizable |
| Extended Length | Defined as normal working extension |
| Straight Tail Length | Customizable at both ends |
| Connector Type | Open end, standard or custom connector |
| Rated Voltage | Confirmed according to complete construction |
| Rated Current | Confirmed according to conductor, length and connector |
| Operating Temperature | Confirmed according to selected materials |
| Color | Standard or custom color discussion |
| Logo and Label | Optional |
| Testing Requirement | Agreed before sampling |
Cable Structure and Construction Options
The construction may include flexible power conductors, signal cores, twisted pairs or shielding depending on the device. A TPU jacket protects the assembly and provides coil memory. Connector locking, molded exits and tail directions are reviewed for the mounting location. Coil dimensions are chosen to reduce sagging while avoiding excessive pull on the equipment or user.
Tradeoffs should be reviewed rather than hidden. Increasing conductor size or adding shielding may increase cable diameter and weight. A tighter coil can increase stress, while a longer extension can affect voltage drop, return force and service life. Nexharn confirms the proposed construction and sample acceptance plan before mass production.
Why TPU for This Application
TPU is considered for flexible handling, abrasion resistance and a durable surface in frequently used equipment. Sweat and cleaning-agent exposure should be identified rather than assumed. Material samples or compatibility tests may be appropriate when a specific disinfectant or maintenance chemical is used regularly.
Testing and Quality Control
Test requirements and acceptance criteria are confirmed before sampling. Production inspection follows the approved drawing, sample and order specification.
- Continuity and approved pinout check
- Dimensional, extension and recovery inspection
- Connector retention and strain-relief review
- Vibration or movement test when criteria are available
- Material compatibility discussion for cleaning exposure
- Appearance, labeling and spare-part packaging inspection
Information Required for Quotation
For an efficient engineering review, send the target application, wiring or pinout, electrical requirement, natural coil length, normal working extension, coil outside diameter, straight tail lengths, connector details, working environment, estimated quantity, packaging and destination market. A drawing is helpful but not mandatory; equipment photos, an existing sample or a dimensioned sketch can be used to begin discussion.
Send Us Your Drawing | Download RFQ Preparation Tools
Buyer FAQ
Can the cable be designed for treadmill or bike consoles?
Yes. Provide the console voltage, connector, movement, mounting points and normal working distance so the construction can be reviewed.
Is TPU unaffected by sweat and cleaning chemicals?
No material should be assumed compatible with every chemical. Share the cleaning agents, concentration and exposure pattern for evaluation.
How can cable sagging be reduced?
Coil geometry, cable weight, mounting direction and return force can be adjusted, but the cable must remain comfortable and avoid stressing connectors.
Can power and sensor signals be combined?
It may be possible with an appropriate conductor and shielding arrangement. Circuit details and noise sensitivity must be reviewed first.
What should be included in the RFQ?
Provide equipment type, installation photos, circuit or pinout, movement range, connector, environment, quantity, testing and packaging needs.
Related Products and Technical Guides
- TPU Coiled Cable product range
- Custom TPU spiral cable manufacturing
- Seven specifications to confirm before RFQ
- TPU versus PVC coiled cable buyer guide
Request a Custom Quote
Send your drawing, sample photo, target dimensions, quantity, application and packaging needs. Nexharn Connectivity will review specification gaps, suggest a practical sample route and reply with quotation guidance.
Need a custom TPU coiled cable? Send a drawing, sample photo or basic requirements for review.
MOQ and Lead Time
MOQ is quoted after the conductor construction, TPU grade, connector, tooling, testing and packaging are reviewed. Sample and production lead times are estimated after the drawing revision, material availability, quantity and approval route are confirmed. Request written project terms; no fixed MOQ or delivery promise applies to every custom cable.
Testing and Custom-Option Resources
For project-specific test methods, equipment and acceptance records, review TPU cable testing and quality equipment. Use the RFQ, sample approval and packaging worksheets to describe custom conductor, connector, coil geometry, shielding, labels and pack options before quotation.
Compare TPU coiled cable types or send your drawing for MOQ and lead-time review.
Related TPU Coiled Cable Applications
Compare Adjustable Desk Control Coiled Cable, Massage Chair and Electric Furniture Coiled Cable, Coiled Cable for Power Tools for nearby equipment and circuit requirements. Use the TPU coiled cable application guide to browse the complete application range.
View all custom TPU coiled cables or send your drawing and application requirements.
