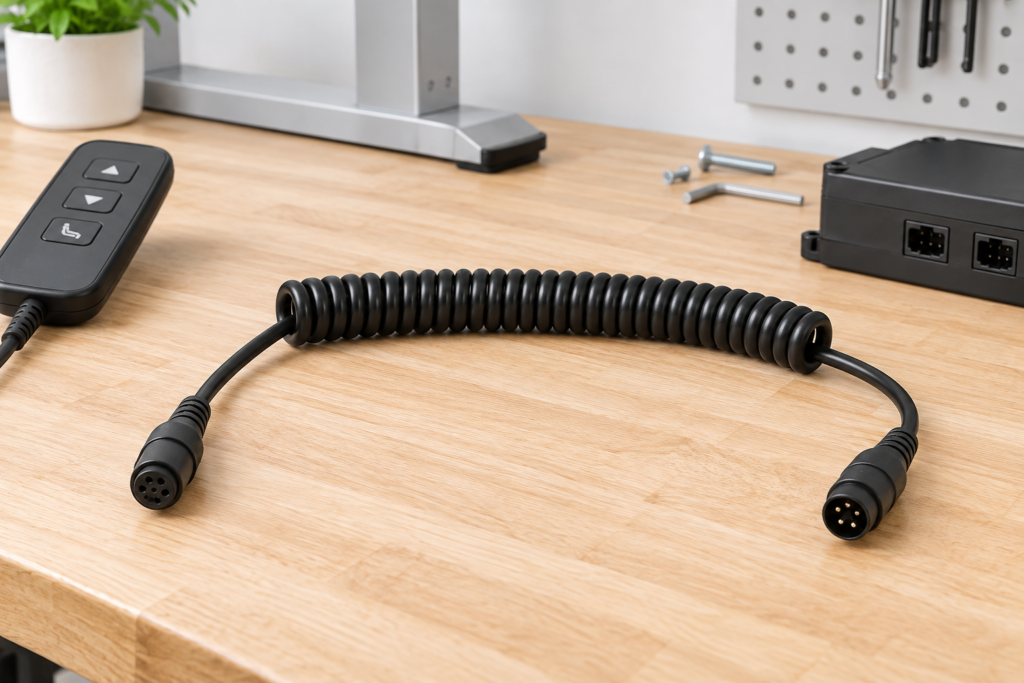

Massage Chair and Electric Furniture Coiled Cable

Custom TPU coiled cable for massage chairs, recliners, adjustable beds and other electric furniture hand controls. The design is reviewed around actuator-control wiring, user reach, cable storage, connector retention and repeated hand-controller movement.

Quick Answer

An electric furniture control coiled cable should let the user move the handset comfortably while keeping the cable clear of hinges, frames and actuator mechanisms. Define controller function, connector pinout, relaxed storage length, required reach and routing before sampling.

Application Risks

• The cable enters a hinge, frame gap or moving actuator area.
• Working extension is too short for the user’s position.
• Excess return force pulls the handset from the user or holder.
• Connector keying or pinout does not match the control box.
• Straight-tail length places the first coil against the enclosure.

Recommended Cable Construction

The assembly can use low-voltage power and control conductors, optional shielding for project-specific signals, flexible TPU jacket, straight tails and molded or assembled connectors. Conductor count and gauge are selected from the hand-control and actuator circuit.

Dimensions and Rebound

Measure the distance from control box to handset in seated, reclined and stored positions. Specify relaxed length, normal working reach, temporary extension, coil diameter, pitch and straight tails so the cable stays clear of moving furniture parts.

Connector, Pinout and Shielding

Provide controller and control-box connector references, pinout, keying, retention and exit direction. If multiple furniture models use similar connectors, part-number and label control should be included in the packaging requirement.

Testing and Sample Approval

• Continuity and pinout against the wiring diagram
• Connector fit, keying and retention check
• Relaxed and working length measurement
• Routing check through furniture positions
• Strain-relief and rebound observation
• Label and packaging approval

MOQ, Lead Time and Custom Options

MOQ and lead time are evaluated after the conductor construction, connector availability, tooling, sample checks, order quantity, marking and packaging are confirmed. Custom options include coil geometry, straight tails, conductors, gauge, shielding, jacket color, connectors, labels and unit packaging.

Buyer Checklist

• Furniture type and control function
• Control box and handset models
• Voltage, current and conductor requirement
• Connector references and pinout
• Relaxed length, reach and routing path
• Movement and pinch-point information
• Sample quantity, annual demand and labels

Compare all custom TPU coiled cable options or upload a drawing, sample photo and working-extension requirement for review.
